ATV-02
Android TV OS 12.0

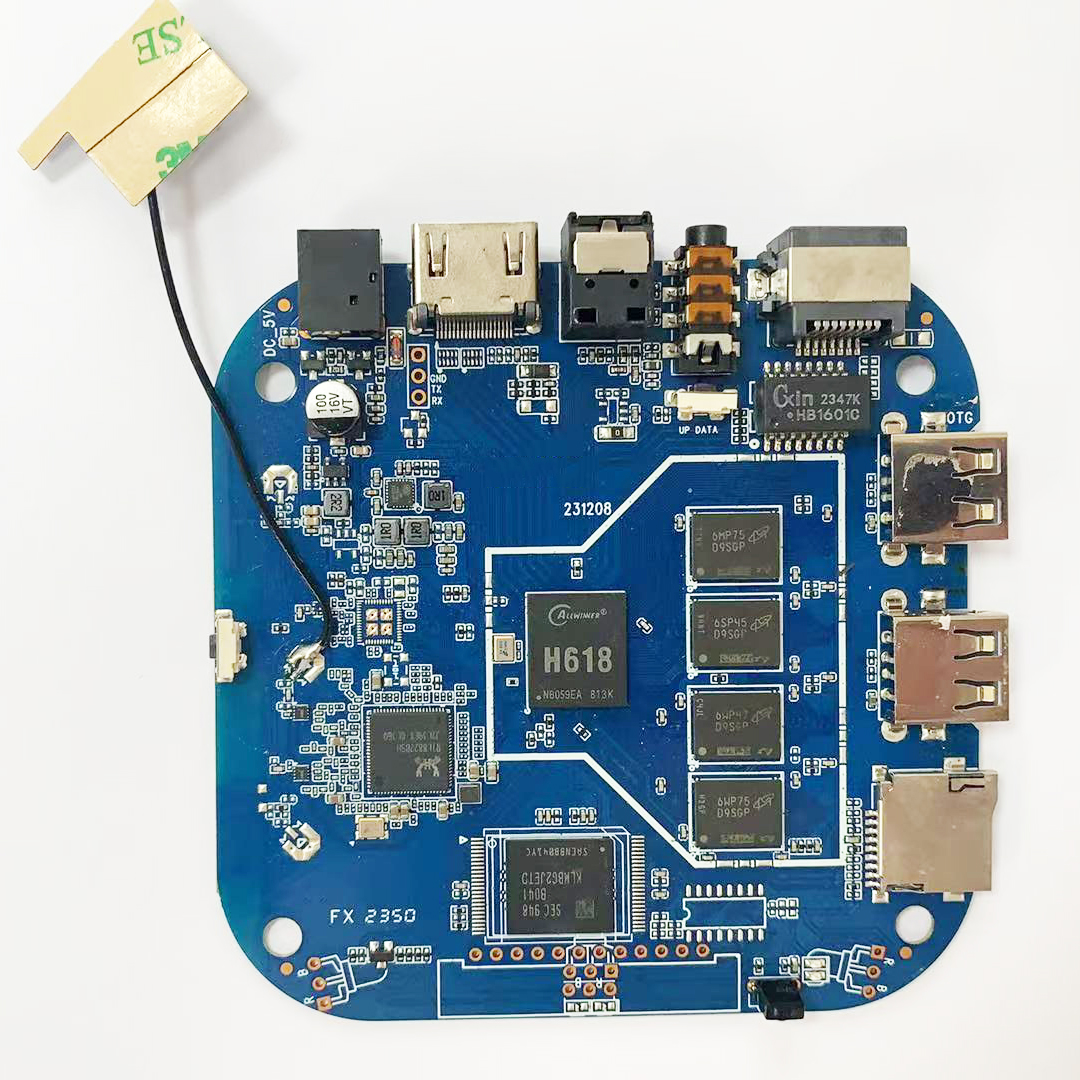

Allwinner H618
DRAM：4 DDR3
MEMORY：32 eMMC Flash
| Product Description | ||
| Quad core 64 bit 4K HDR Android TV Dongle Android Q TV system H.264 1080p 60fps Video encoding H.264/H.265 10bit HDR decoding up to 4K@60fps HDMI 2.0 max to 4K60 output Dual Band 2T2R Mino WIFI | ||
| Basic parameters | ||
| System | SoC: Allwinner H618 | |
| CPU: Quad-core ARM Cortex™-A53 1.5G | ||
| GPU: Mali-G31 | ||
| DRAM: DDR3 4GB | ||
| FLASH: EMMC 32GB | ||
| OS: Android 12 | ||
| Network | Build in MIMO WiFi 2T2R 2.4GHz/5GHz 802.11a/b/g/n/ac + BT 4.2 （8822BS) | |
| I/O | ||
| Video Output | HDMI2.0(4K60), AV | |
| Network | Buildin Wi-Fi 2 Antenna, 10/100M RJ45 | |
| Peripheral Interface | USB2.0*2, TFCARD, OPTICAL | |
| Power Interface | DC 5V 2A | |
| Media | ||
| Video | Decoder: • H.265 Main10@L5.1 decoder up to 4K@60fps • VP9 Profile 2 decoder up to 4K@30fps • AVS2 JiZhun 10bit decoder up to 4K@30fps • H.264 BP/MP/HP@L4.2 decoder up to 4K@30fps • Multi-format 1080p@60fps video playback formats, including H.264 BP/MP/HP, H.263 BP, VP8, MPEG-1 MP/HL, MPEG-2 MP/HL, MPEG-4 SP/ASP@L5, AVS+/AVS JiZhun, WMV9/VC1, etc | |
| Format: MKV, TS, M2TS, MOV, MP4, RM, RMVB, AVI, MPG, MPEG, DAT, VOB, FLV etc. | ||
| Audio | Decoder: Format: | |
| Subtitle Format | SMI, SRT, SSA, ASS,SUB, SUB+IDX, ISO Navigation | |
| Photo Format | HD JPEG/BMP/GIF/PNG/TIFF | |
| Features | ||
| Network Streaming | HTML5, RTSP, HLS, Smooth streaming | |
| DRM | Widevine Level 3 | |
| Multi-screen interactive | Miracast, DLNA and Airplay | |
| Local Media Playback | Video/Audio/Picture | |
| TV APP | Stalker/Ministra/Xtream code/M3U(4K HDR10), Google Play(TV version), Google Voice Assistant, YouTube(4K), Netflix(TV Version), Disney+(TV Version), HBO Max(TV Version), PrimeVideo(TV Version), Android TV APP | |
| External Storage | USB storage max to 2TB (FAT32/NTFS) | |
| System Upgrading | Upgrading via USB disk or internet | |
| Other parameters | ||
| Input Voltage | DC IN 5V/2A | |
| Power Consumption | 8W Max | |
| Operation Temperature | 0~40℃, Humidity<95% | |
| Physical characteristics | Size: | |
| Weight: | ||
| Material | ||
| Proposed Accessory | Power Adapter, User manual, HDMI cable, 22 Keys BT Voice RCU | |
